Description
Product Overview

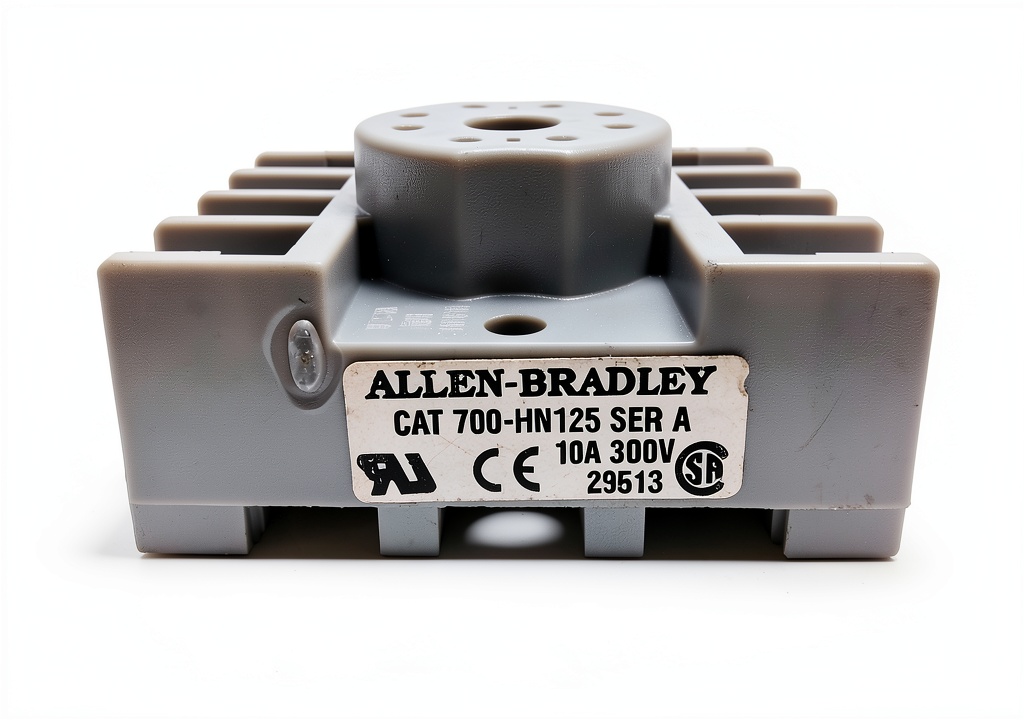

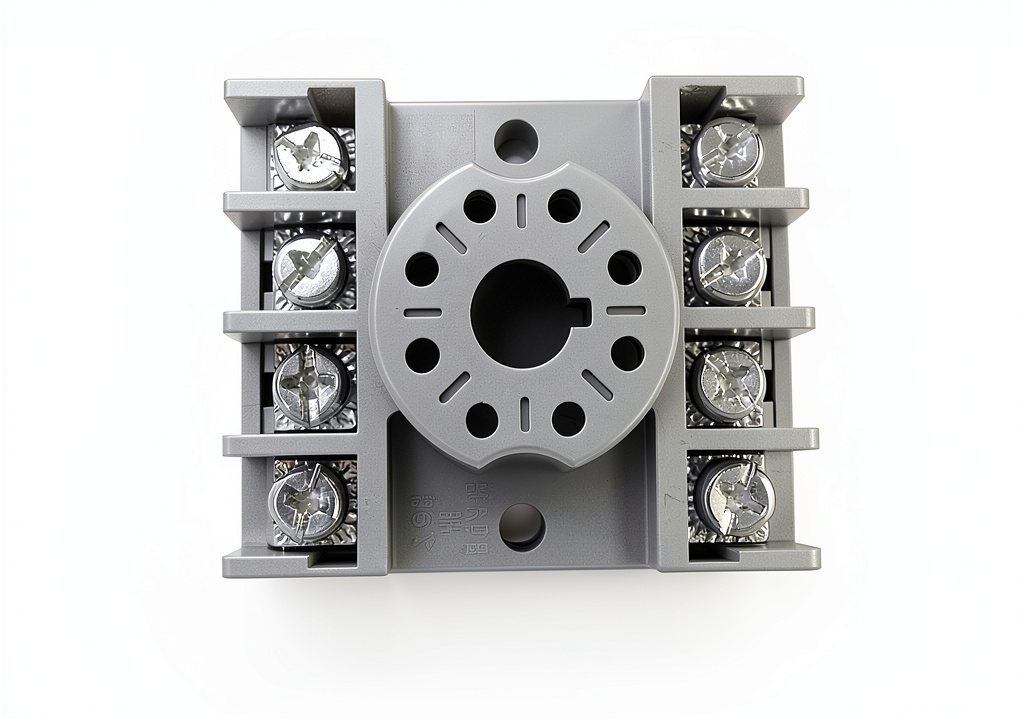

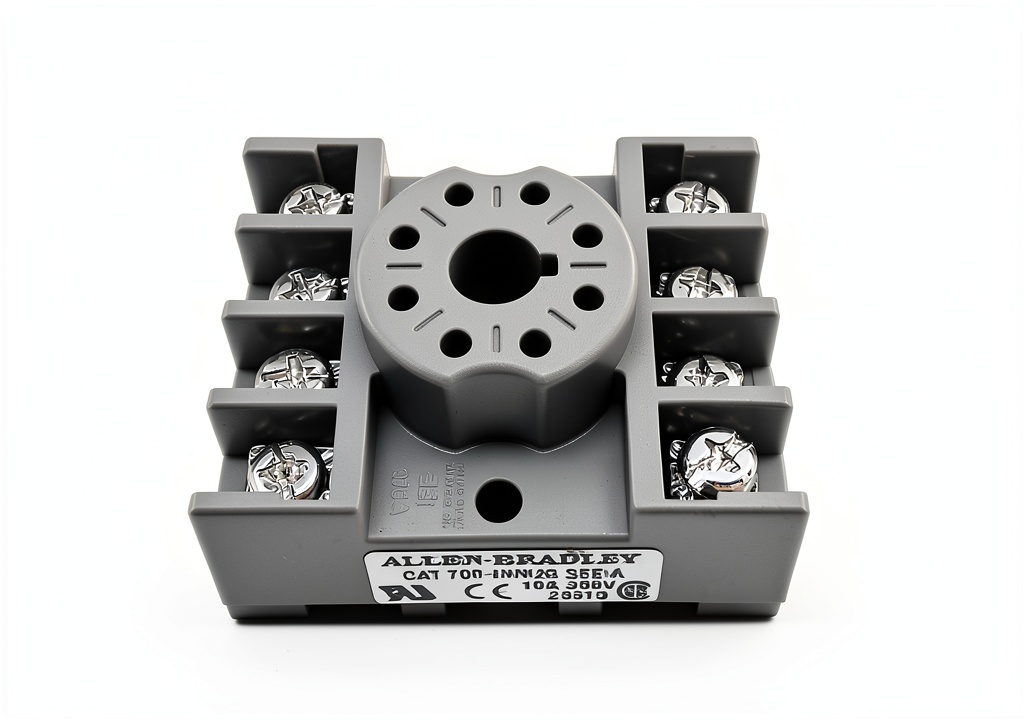

The Allen Bradley 700-HN125 8 pin socket is engineered to meet the rigorous demands of modern industrial automation. Housed in a sturdy, compact enclosure measuring just 3 x 1 x 1 inches and weighing only 8 ounces, this socket delivers a high‑density connection solution without sacrificing durability. Each socket features precision‑molded contacts that provide consistent electrical performance, reducing the risk of intermittent connections that can lead to costly downtime. The design adheres to Allen‑Bradley’s legacy of quality, ensuring that the socket can withstand harsh temperature fluctuations, vibration, and exposure to contaminants common in process control environments. Packaged in a new box of nine units, the product offers immediate availability for large‑scale projects, spare parts inventories, or rapid field replacements. The 700‑HN125 model is a standard component within the Allen‑Bradley family, compatible with a wide range of controllers, I/O modules, and power supplies, making it a versatile choice for engineers seeking reliable, interchangeable hardware.
Usage
Designed for process controllers, PLC racks, and distributed I/O systems, the 700‑HN125 socket excels in environments where space is at a premium and reliability is non‑negotiable. Its 8‑pin configuration supports a variety of signal types, including digital inputs, analog outputs, and communication lines, allowing technicians to consolidate wiring and simplify panel layouts. Typical applications include water treatment facilities, chemical processing plants, and manufacturing lines where real‑time monitoring and control are essential. The socket’s compact footprint enables installation in tight panel bays, reducing overall panel size and freeing up valuable space for additional components or future expansion. Because the socket is supplied in a new box of nine, maintenance teams can quickly replace failed units without waiting for back‑order shipments, ensuring continuous operation and minimizing production interruptions.
Why Choose Us
When selecting a connector for critical control systems, the source of the product matters as much as the product itself. Our inventory of Allen‑Bradley 700‑HN125 sockets is sourced directly from authorized distributors, guaranteeing authenticity and adherence to original specifications. Each box undergoes a rigorous quality‑assurance process that includes visual inspection, dimensional verification, and electrical testing to confirm that every contact meets the required resistance and insulation standards. In addition to the product’s inherent durability, we provide comprehensive technical support, offering guidance on proper installation techniques, troubleshooting tips, and compatibility advice. Our after‑sales service includes a responsive help desk and access to detailed documentation, ensuring that customers can integrate the socket into their systems with confidence. By choosing our offering, you benefit from a combination of genuine Allen‑Bradley quality, prompt availability, and a support network that helps you achieve reliable, long‑term performance in your automation projects.
Key Features
- Compact footprint fits into tight panel spaces, reducing overall system size.
- Precision‑engineered contacts provide stable electrical performance and low resistance.
- Robust housing resists temperature extremes, vibration, and dust ingress for long‑term reliability.
- Versatile 8‑pin configuration supports multiple signal types, simplifying wiring schemes.
- Included in a new box of nine, ensuring immediate availability for replacements and large‑scale deployments.
- Backed by dedicated technical support and genuine Allen‑Bradley quality assurance.
FAQ
What is the maximum current rating for each pin?
The 700‑HN125 socket is rated for up to 2 amps per pin, which is suitable for most signal and low‑power control applications in industrial environments.
Can the socket be used with other brands of controllers?
While the socket is optimized for Allen‑Bradley products, its standard 8‑pin layout is compatible with many third‑party controllers that adhere to the same pin spacing and voltage specifications.
Is the socket rated for hazardous locations?
The 700‑HN125 is not intrinsically safe and should not be used in classified hazardous areas without additional protective measures or certification.
How do I replace a faulty socket in an existing panel?
First, power down the equipment and verify that the circuit is de‑energized. Remove the mounting screws, disconnect the wiring harness, and insert the new socket, ensuring that the pins align correctly. Re‑secure the mounting hardware, reconnect the wires following the original wiring diagram, and restore power. Our technical support team can provide step‑by‑step guidance if needed.
What warranty does this product carry?
All new boxes of nine Allen‑Bradley 700‑HN125 sockets are covered by a one‑year limited warranty against manufacturing defects, backed by our customer service team for any warranty claims.
