Monarch Digital Stroboscope Motion Analysis Speed

Description

Product Overview

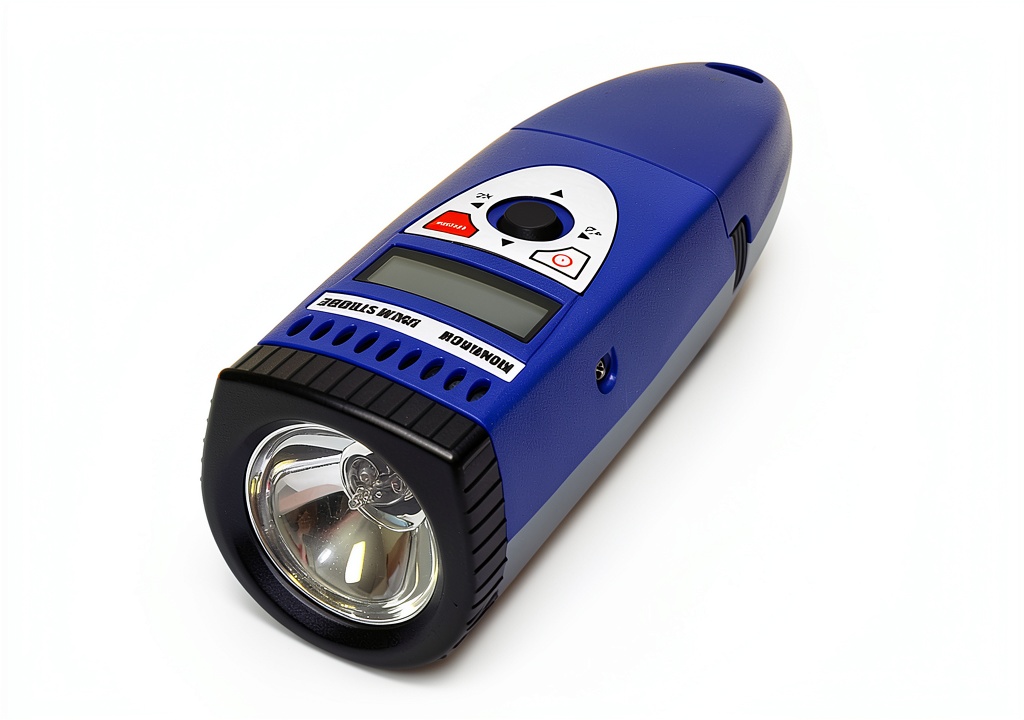

The Monarch digital stroboscope is a precision instrument designed for detailed motion analysis and speed measurement in industrial and scientific settings. Powered by batteries, it features a xenon flash tube that provides crisp images with a flash duration of 10 to 30 microseconds. With an internal trigger range of 100 to 12,500 FPM and external trigger up to 14,000 FPM, it offers wide-range flexibility. Key specifications include a 2.5mm TTL-compatible input/output for external sensors, eight memory positions for frequency recall, and a joystick-style tuning mechanism for effortless one-handed operation. This stroboscope is built to handle repetitive motion inspection, printing quality checks, and preventive maintenance tasks with reliability and accuracy.

Usage

This stroboscope is ideal for professionals in industrial maintenance, manufacturing, and quality control environments. It is commonly used for inspecting moving parts in machinery, analyzing printing processes to detect defects, and measuring rotational speeds in motors and conveyors. Suitable for technicians, engineers, and researchers, it supports applications in preventive maintenance to avoid equipment failures, motion studies in production lines, and speed verification in laboratory settings. The device excels in scenarios requiring precise, non-contact measurement and visualization of high-speed motions.

Why Choose Us

Monarch Instrument stroboscopes stand out due to their robust construction, advanced xenon flash technology, and user-centric design. The adjustable flash rate and TTL compatibility ensure compatibility with various sensors and systems, while the long-lasting battery power enhances portability for field use. Backed by Monarch’s reputation for industrial-grade instruments, this product offers consistent performance, durability in harsh environments, and precise calibration for accurate results. Its intuitive joystick control and memory features reduce setup time, increasing productivity and reducing operator error.

Key Features

• Xenon flash tube with 10-30 microsecond duration for sharp, clear motion images
• Adjustable flash rate from 100 to 12,500 FPM internally and 0 to 14,000 FPM externally
• TTL-compatible input and output for easy integration with external sensors
• Joystick-style tuning enabling convenient one-handed operation
• Eight memory positions to store and recall user-defined frequencies quickly

FAQ

What is the typical battery life of this stroboscope?

The stroboscope operates on standard batteries, providing several hours of continuous use depending on flash rate settings and frequency of operation. For extended tasks, it is recommended to use high-capacity batteries or have spares available.

Can it be used with external sensors?

Yes, the 2.5mm TTL-compatible input allows connection to external sensors for triggering, making it suitable for tachometer mode and synchronized measurements in complex systems.

What applications is it best suited for?

It is ideal for motion analysis, speed measurement of rotating equipment, printing inspection, and preventive maintenance in industrial, scientific, and manufacturing contexts.

How do I store and recall frequencies?

Use the joystick to set the desired frequency and save it to one of the eight memory positions. Recall is straightforward via the control interface for repeated use.

Is the flash tube replaceable?

The xenon flash tube is designed for long life but can be replaced by authorized service centers if needed, ensuring minimal downtime and maintained performance.
